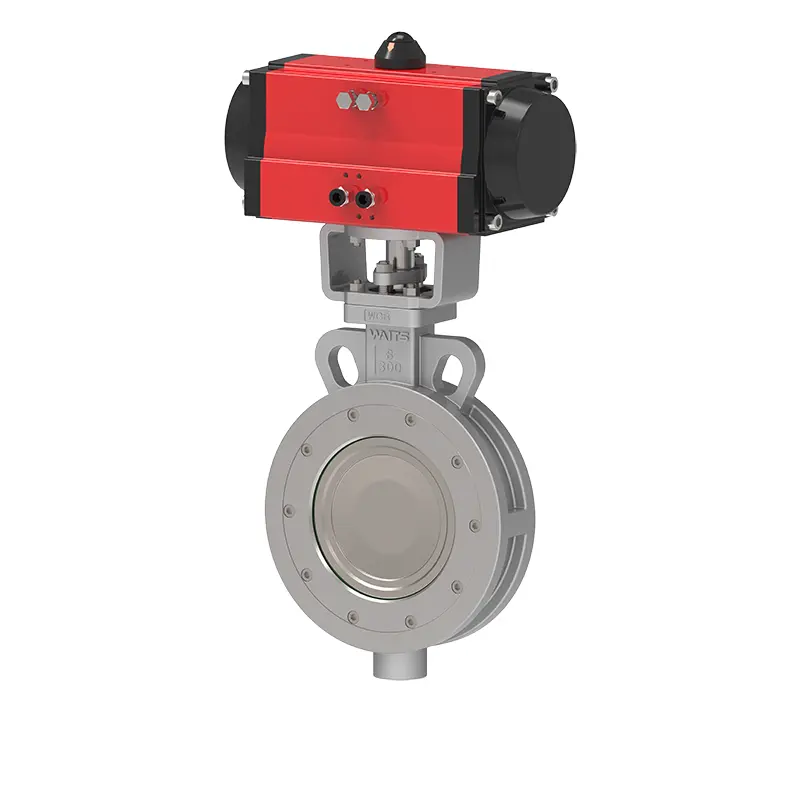

Pneumatic High Performance Butterfly Valve

Waits adalah produsen katup kupu dan pemasok kupu -kupu berkinerja tinggi profesional dengan basis produksinya sendiri. Pengalaman industri kami yang kaya dan sekelompok profesional memperhitungkan perlindungan lingkungan dan pengembangan berkelanjutan dalam desain dan produksi, dan menggunakan bahan berkualitas tinggi untuk memastikan kinerja produk.

mengirimkan permintaan

Deskripsi Produk

Carefully apply the double eccentric structure design: When the valve is opened, the eccentric valve disc quickly leaves the valve seat sealing surface, shortening the contact time between the valve disc and the valve seat sealing surface, which helps to extend the service life of the valve.

Standar Implementasi

Standar Desain	API 609/607 fire safe, EN 593, ASME B16.34
Standar Akhir	ANSI B16.5 Cl. 150lb AS 2129 Tabel D dan E BS 10 Tabel D dan E? MSS SP44 Cl. 150lb AWWA C207 150lb ISO 2531 PN10 dan PN16 ISO 7005, PN10 dan PN16
	Wafrf
Inspeksi & Tes	API 598, EN 12266, ISO 5208, ANSI B16.104
Tatap muka	API 609, ISO 5752 Pengakhiran: ASME B16.5, ASME B16.47, EN 1092, JIS B2210, GOST 12815
Flensa teratas	ISO 5211

Aplikasi

Ukuran	NPS 3″ ~ NPS 80″ DN80~ DN2000
Rentang tekanan	CL150~CL600 PN10~ PN40
Kisaran suhu	-30℃~+260℃ metal sealing up to 450 ℃
Mode drive	Turbin, pneumatik, listrik
Lingkungan operasi	Pemrosesan Kimia Sistem Ballast dan Bilge Tanaman desalinasi, rig pengeboran, air minum Bubuk kering, makanan dan minuman, tanaman gas VPSA Industri Pertambangan HAVC, Industri Kertas, Penanganan Pasir, Air Laut, Industri Gula Pengolahan Air Teknis Termo Air limbah
Metode mengemudi	Pneumatik elektrik tuas tuas
TUBUH	Besi cor besi ulet karbon baja stainless steel al-Bronze
CAKRAM	Stainless steel al-Bronze
TANGKAI	17-4ph XM-19 Monel K500
KURSI	Viton ptfe/rptfe/ppl/peek

Keuntungan Kinerja

1. Long service life: Waits protects the valve seat ring from wear and erosion by design, thereby extending the service life, reducing the cost of maintenance and replacement, and making management and use more convenient.

2. Reliable: The double eccentric design can ensure sealing, while also achieving low torque and easy operation.

3. Easy to replace and maintain: First of all, if necessary, the valve seat and packing can be replaced in just a few minutes with maintenance tools. Another point is that the manufacturing material of the pneumatic high performance butterfly valve is corrosion-resistant, and maintenance does not require downtime, or frequent maintenance and lubrication.

4. Bidirectional pressure sealing is applied, and there is no flow restriction during installation.
